Image is for reference only , See Product Specifications

AWCCA-107T52H40-C01-B

Manufacturers: Abracon LLC.
Product Category: Wireless Charging Coils
Data Sheet: AWCCA-107T52H40-C01-B
Description: TX 3 COIL 1 LAYER 11.5UH 12UH
RoHS status: RoHS Compliant
Attribute Attribute Value
Manufacturer Abracon LLC.
Product Category Wireless Charging Coils
Type 3 Coil, 1 Layer
Series AWCCA-107T52
Function Transmitter
Q @ Freq 80 @ 100kHz
Tolerance ±10%
Inductance 11.5µH, 12µH
Part Status Active
Size / Dimension 4.25" L x 2.06" W x 0.15" H (108.0mm x 52.5mm x 4.0mm)
DC Resistance (DCR) 56mOhm
Current - Saturation 18A
Current Rating (Amps) 7.5A
Operating Temperature -25°C ~ 85°C
Frequency - Self Resonant 7MHz
New and Original electronic components AWCCA-107T52H40-C01-B from Huge inventory, fast shipment, Lanka Micro electronics website accept order online、BOM list quotation, and accept various payment term. Right now register as our member,you can get lots of discounts. For any inquiry, welcome to send email to us, or leave a message. lanka micro cooperation

Lanka Micro Electronic Co.,Limited is a global electronic components distributor. Since company was founded, we always uphold 'best product, best reputation,best service, reasonable price' business philosophy, based on professional quality and consistent professionalism, we win trust and support from the majority of suppliers and customers, and rapidly rising in the fierce market competition.

In Stock 60 pcs

Refrence Price ($) 1 pcs 100 pcs 500 pcs
$10.58 $10.37 $10.16
Minimum: 1

Request Quote

Fill out the below form and we will contact you as soon as possible

Bargain Finds

AWCCA-50N50H40-C02-B
Abracon LLC.
$8.22
AWCCA-53N53H50-C02-B
Abracon LLC.
$8.22

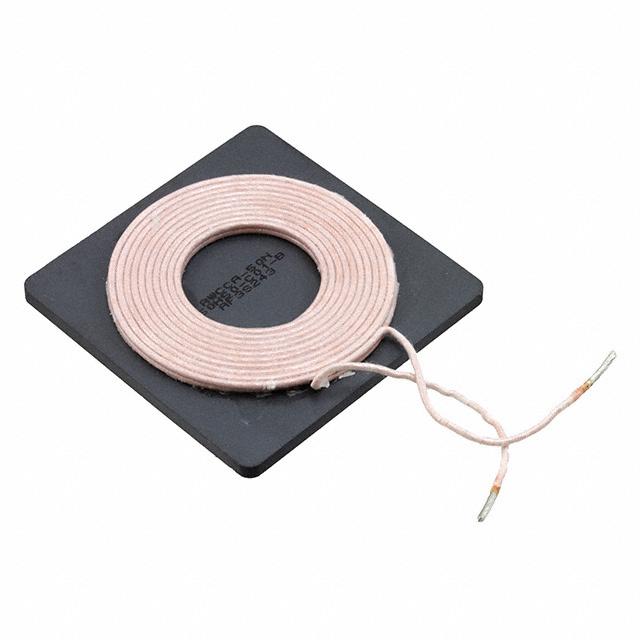

AWCCA-50N50H50-C01-B
