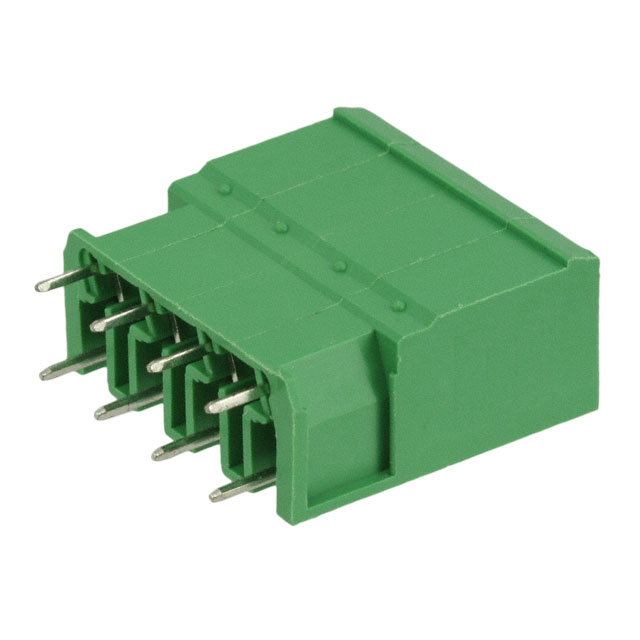

Image is for reference only , See Product Specifications
OQ0875510000G
| Manufacturers: | Amphenol Anytek |
|---|---|
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
| Data Sheet: | OQ0875510000G |
| Description: | TERM BLOCK HDR 8POS 90DEG 5MM |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Amphenol Anytek |
| Product Category | Terminal Blocks - Headers, Plugs and Sockets |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Color | Green |
| Pitch | 0.197" (5.00mm) |
| Series | 06-500 |
| Features | Mating Flange |
| Packaging | Bulk |
| Screw Size | - |
| Part Status | Active |
| Current - UL | 12A |
| Voltage - UL | 300V |
| Current - IEC | - |
| Mounting Type | Through Hole |
| Torque - Screw | - |
| Plug Wire Entry | - |
| Contact Material | Copper Alloy |
| Number of Levels | 1 |
| Insulation Height | 0.335" (8.51mm) |
| Termination Style | Solder |
| Wire Strip Length | - |
| Header Orientation | 90°, Right Angle |
| Ingress Protection | - |
| Contact Tail Length | 0.138" (3.50mm) |
| Dielectric Material | Thermoplastic Resin |
| Number of Positions | 8 |
| Positions Per Level | 8 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 115°C |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Material Flammability Rating | UL94 V-0 |
New and Original electronic components OQ0875510000G from Huge inventory, fast shipment, Lanka Micro electronics website accept order online、BOM list quotation, and accept various payment term. Right now register as our member,you can get lots of discounts. For any inquiry, welcome to send email to us, or leave a message. ![lanka micro cooperation]()
Lanka Micro Electronic Co.,Limited is a global electronic components distributor. Since company was founded, we always uphold 'best product, best reputation,best service, reasonable price' business philosophy, based on professional quality and consistent professionalism, we win trust and support from the majority of suppliers and customers, and rapidly rising in the fierce market competition.
In Stock 88 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.65 | $0.64 | $0.62 |
Minimum: 1
