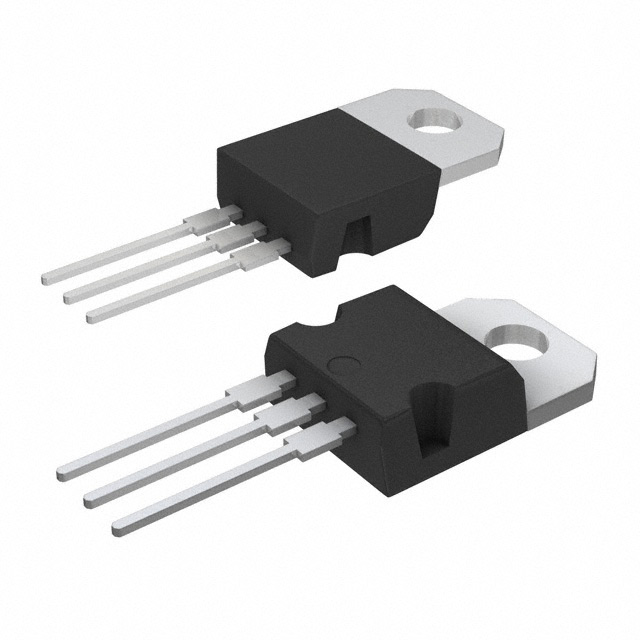

Image is for reference only , See Product Specifications

STGP20M65DF2

Manufacturers:	STMicroelectronics
Product Category:	Transistors - IGBTs - Single
Data Sheet:	STGP20M65DF2
Description:	IGBT TRENCH 650V 40A TO220
RoHS status:	RoHS Compliant

Product Description
Customer Reviews

Attribute	Attribute Value
Manufacturer	STMicroelectronics
Product Category	Transistors - IGBTs - Single
Series	M
IGBT Type	Trench Field Stop
Input Type	Standard
Gate Charge	63nC
Part Status	Active
Power - Max	166W
Mounting Type	Through Hole
Package / Case	TO-220-3
Test Condition	400V, 20A, 12Ohm, 15V
Base Part Number	STGP20
Switching Energy	140µJ (on), 560µJ (off)
Td (on/off) @ 25°C	26ns/108ns
Operating Temperature	-55°C ~ 175°C (TJ)
Supplier Device Package	TO-220
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 20A
Reverse Recovery Time (trr)	166ns
Current - Collector (Ic) (Max)	40A
Current - Collector Pulsed (Icm)	80A
Voltage - Collector Emitter Breakdown (Max)	650V
